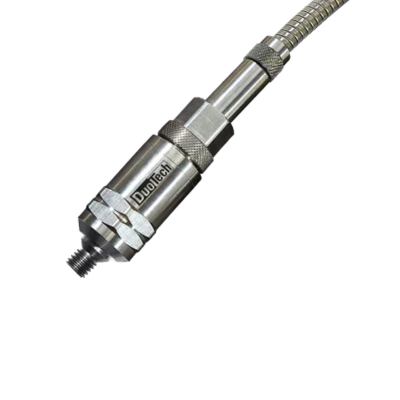

DuoTech® Accelerometers – Flexible, High-Performance Condition Monitoring
The DuoTech accelerometer combines two proven measurement methods in a single sensor: vibration analysis and shock pulse monitoring. With patented HD ENV® and SPM HD® technologies, it delivers exceptional flexibility for monitoring bearings, lubrication, and vibration-related problems with unmatched precision.
Engineered with digital technology and carefully tuned piezo-electric mechanics, DuoTech provides reliable, high-resolution readings across both low and high frequencies. Its robust design ensures dependable performance in a wide variety of industrial environments, including harsh and potentially explosive areas.
For maximum versatility, DuoTech can be used for either vibration or shock pulse measurement—or both simultaneously—making it a powerful all-in-one solution. The quick connector version ensures flawless signal transmission when used with portable data collectors and analyzers, supporting efficient fieldwork and data acquisition.
By combining the strengths of two world-leading technologies in one rugged sensor, DuoTech accelerometers set a new standard for condition monitoring flexibility and performance.
Additional Information
| Specifications | SLC141, SLC144, TRC100, TRC150 |
|---|
Benefits
TWO-IN-ONE FLEXIBILITY
Combining the world’s most efficient condition monitoring technologies, DuoTech provides maximum flexibility to select the optimal measuring technique for any problem.
EFFICIENCY BOOST
Adding more possibilities to existing measuring points by combining vibration and shock pulse measurement, DuoTech is the ultimate choice to boost condition monitoring efficiency.
PERFECT FOR RETROFITS
Easy installation to standard vibration inputs via twisted pair cable and MIL type connector make the DuoTech accelerometer an excellent and cost-efficient choice for retrofit projects.
Resources
Technical Overview
The accelerometer is mounted in a countersunk mounting hole identical to holes normally used by shock pulse transducers.
The housing and base are made of stainless acid proof steel suitable for aggressive environments.
The DuoTech solutions come in a variety of choices and specifications to fit your needs. Rated IP65, or IP66/67 with sealed connector (IP66/67 or higher).
DuoTech SLC141
Nom. sensitivity, main axis: 10 mV/g*
Measuring range, vibration: 6000 m/s2=600g
Measuring range, shock pulse: 10 to 95 dB
* Individual value given on the calibration chart.
DuoTech SLC144
Nom. sensitivity, main axis: 100 mV/g*
Measuring range, vibration: 600 m/s2=60g
Measuring range, shock pulse: −12 to 75 dB
Also available with quick connector.
* Individual value given on the calibration chart.
Installation Materials
Connectors, cables, and service box
We offer a wide range of connectors in composite or stainless-steel material. Composite material provides benefits such as vibration dampening and weight reduction, while stainless steel can withstand mechanical forces and works both in high and low temperatures, etc.
For our connectors we have different types of cables, and to further secure the installation, we supply uncovered, acid proof stainless steel conduits. These are protective covers slipped onto the cable and fixed to the transducer at the connector. Stainless steel cable clips are available for holding the conduit. For protection of cable joints from moist and water, a stainless, acid proof steel service box is available.
