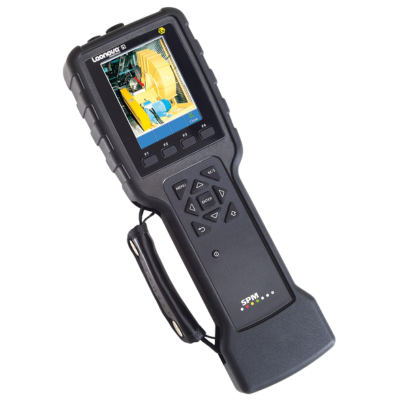

Leonova Emerald IS – Advanced Condition Monitoring for Hazardous Areas
ATEX/IECEx certified for Zones 0–2
Leonova Emerald IS is a state-of-the-art handheld instrument designed for intrinsically safe condition monitoring in hazardous environments. Certified for ATEX/IECEx Zones 0, 1, and 2, it combines advanced technologies with a rugged, user-friendly design—making it an ideal solution for industries such as oil & gas, mining, petrochemicals, and refineries.
Rugged and Reliable
Built to perform in harsh and demanding industrial conditions, Leonova Emerald IS ensures safe and reliable operation where strict intrinsic safety standards are required. Its robust construction makes it a dependable tool for frontline maintenance and long-term monitoring.
Advanced Measurement Technologies
Equipped with powerful diagnostic capabilities, Leonova Emerald IS offers:
SPM HD® technology – for rolling element bearing monitoring across speeds from 1 to 20,000 rpm
HD Order Tracking – for advanced vibration diagnostics under variable operating conditions
Comprehensive vibration analysis – to detect a wide range of machine faults before they become costly failures
Together, these techniques deliver maximum flexibility and diagnostic power in a single instrument.
Optimized for Data Collection
When managing extensive measurement routes or large volumes of routine readings, Leonova Emerald IS excels. Its rugged design and intuitive interface make it an excellent data collector for daily condition monitoring tasks, ensuring efficiency and reliability in the field.
Scalable and Future-Proof
Leonova Emerald IS is built on a scalable system that grows with your needs. Expand functionality as your maintenance strategies evolve, making this a long-term, future-proof investment.
Key Benefits
✅ ATEX/IECEx certified for Zones 0–2
✅ Combines SPM HD® and advanced vibration analysis in one tool
✅ Rugged, field-ready design for harsh environments
✅ Efficient data collection across large measurement routes
✅ Scalable functionality for evolving maintenance needs
Benefits
ENGINEERED FOR PERFORMANCE
Measurements are more precise and spectrums more detailed than ever before, making in-depth bearing and vibration analysis possible even on the most complex industrial applications.
A RELIABLE PARTNER
Loaded with practical functions and useful features ideal for daily use in rough environments. Multiple options are available to speed up measurements and make instrument operation more effective.
DESIGNED FOR EASE OF USE
Multiple measuring assignments can be carried out with the push of a single button. Immediate condition evaluation, alarm generation, historical data and trends – all delivered right on the screen.
Features
Leonova Emerald IS includes the High Definition Shock Pulse Method (SPM HD®) for bearing condition and advanced vibration analysis for general machine condition and more features, see below.

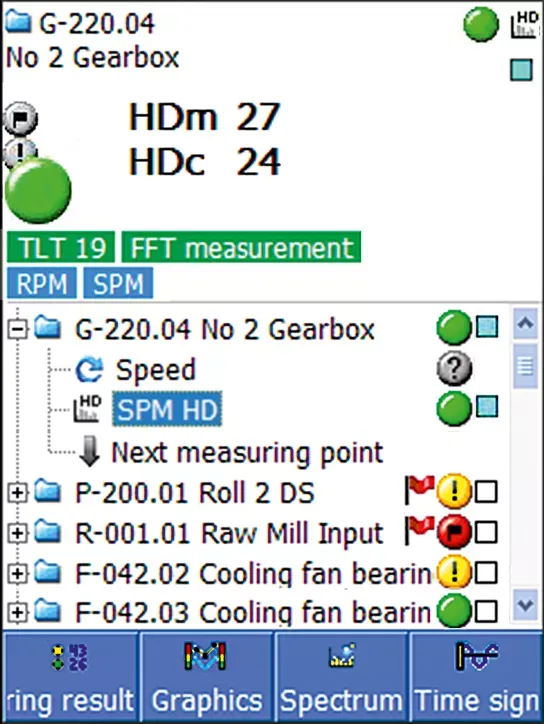

The SPM HD® Method (HDm/HDc)
The SPM HD® method is a patented further development of the Shock Pulse Method (SPM) in being less sensitive to interference from other signals and therefore unique in its ability to measure from very low rpm (0.1 - 20.000 RPM range). SPM HD is used for fast, easy, and reliable diagnosis of the operation condition of rolling element bearings.

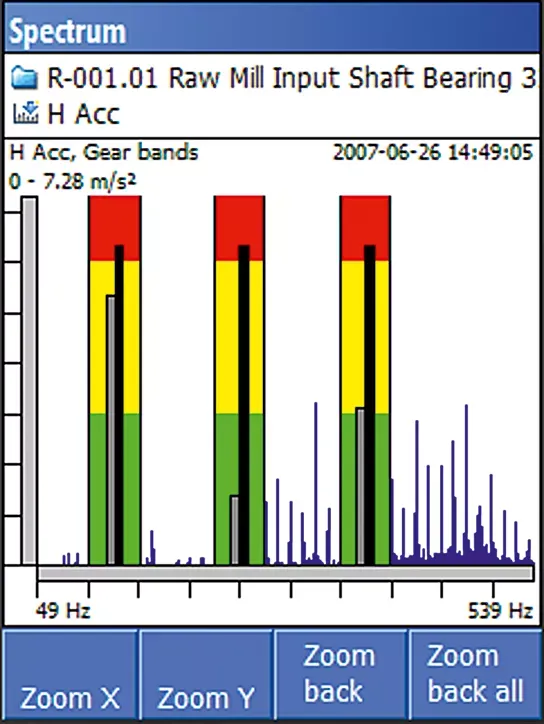

SPM Spectrum™
SPM Spectrum™ is based on extraordinary signal quality and 24 bit A/D conversion that provides razor-sharp resolution and helps determine where a possible bearing damage is located with very high precision.
LR/HR
The LR/HR method was developed from the original Shock Pulse Method for condition diagnosis of rolling element bearings and allows a precision analysis of oil film condition in the rolling interface.
dBm/dBc
The original Shock Pulse Method is based on dBm/dBc that counts the rate of incoming shock pulses per second and provides one value for the shock carpet level and one value for the maximum level (peaks).
VIBRATION ANALYSIS
The HD ENV® technique
HD ENV® is a patented enveloping technique used for early detection of impact-related events such as gear and bearing damage. A number of predefined filters are available for easy selection; each designed to detect damages in different failure stages. The method utilizes cleverly engineered algorithms for digital signal processing to obtain optimal data for trending purposes.
Vibration Severity plus FFT Spectrum
Measurement of vibration velocity, acceleration and displacement (0-20kHz frequency range) according to the latest ISO 10816 standards helps to diagnose general machine condition. In addition to the RMS vibration readings, the instrument displays an FFT spectrum, where symptoms of imbalance, misalignment, and structural weakness are easily identified.
EVAM
The EVAM (Evaluated Vibration Analysis Method) measuring technique produces up to 12800 line spectrum with true zoom, provides ready-made machine 'fault symptoms' as well as trending.
CORRECTIVE MAINTENANCE

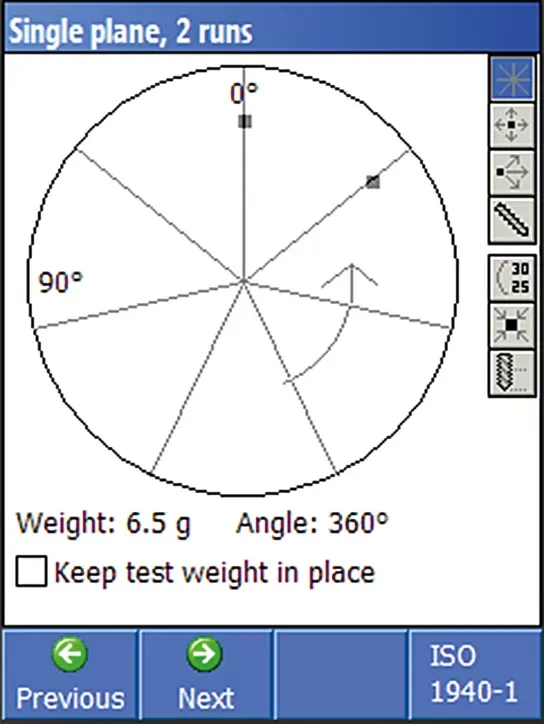

Dynamic balancing
Field rotor balancing in single plane according to ISO 1940-1 standard with an initial vibration measurement guiding the user through a balancing procedure with suggestions for correcting the imbalance.

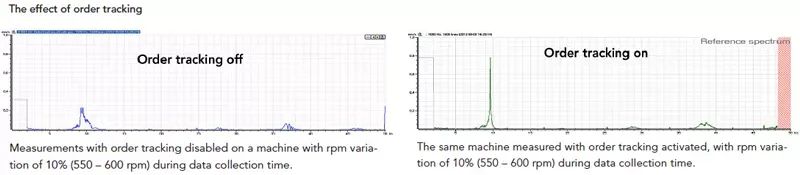

ORDER TRACKING
HD Order Tracking
On machinery operating under variable speed, analysis with HD Order Tracking provides reliable data and crystal-clear measuring results even when RPM varies greatly during the course of measurement. Order tracking is applicable in a very wide RPM range, from just a few to thousands of revolutions per minute.
Technical Overview
Leonova Emerald IS is lightweight, ergonomic, and easy to operate. Load measuring rounds to Leonova from the PC, then simply measure and save. All input data is pre-programmed. You get an instant condition evaluation on a green-yellow-red scale.
The instrument will deliver long working life under the toughest, most demanding circumstances. Leonova Emerald IS comply with the strictest ATEX/IECEx standards and thus can be used in zones 0 - 2.
Ex marking
Gas: II 1G Ex ia IIC T4 Ga, Ta -20°C to +50°C
Mining: I M1 Ex ia I Ma, Ta -10°C to +50°C
Instrument
Dimensions: 306x108x71 mm
Weight: 960 g
Display: TFT colour, 240x320 pixels, 3.5 inch, adjustable backlight
Housing: Carbon-fiber-reinforced enclosure, IP65
Overview

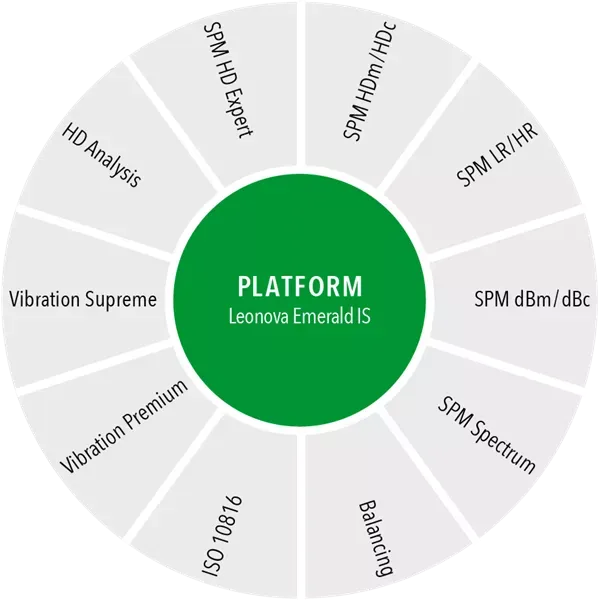

Instrument Modules
To obtain the optimal performance range and instrument price for their purpose, Leonova users can select any or all of the condition diagnosis and maintenance functions below. Platform functions are always included.
Platform functions
- SPM HDm/HDc and/or LR/HR.
- RMS vibration, ISO 2372.
- Speed measurement.
- Temperature measurement.
- Stethoscope function.
- Recording.
- Manual recording, free quantity.
- Checkpoints, free text.
- Recording of vocal comments.
- Supports up to 6400 lines, 10 kHz.
Optional functions
- SPM HD Expert, frequency, and domain analysis.
- Shock pulse method dBm/dBc.
- Shock pulse method HDm/HDc.
- Shock pulse method LR/HR.
- SPM Spectrum.
- Vibration ISO 10816 with spectrum.
- Vibration Premium.
HD ENV.
FFT with symptoms.
6400 lines, 10 kHz.
HD Order tracking.
Time signal.
Post trigger. - Vibration Supreme.
HD ENV.
EVAM evaluated vibration analysis.
12 800 lines, 20 kHz.
+ all functions in Vibration Premium. - HD Analysis.
Vibration Supreme.
SPM HD Expert. - Balancing, single plane.
