Vibration Transducers – Reliable Performance for Industrial Machinery
These vibration transducers are piezo-electric accelerometers of compression type, each individually tuned and equipped with a built-in preamplifier for accurate vibration monitoring of industrial machinery. The electrical signal is fully isolated from the housing, ensuring consistent and interference-free measurements.
With enhanced electronics and excellent ambient performance characteristics, the transducers deliver precise, reliable results across a wide range of applications. Designed to withstand the toughest industrial conditions, they feature stainless, acid-proof steel housings, case isolation, and hermetic sealing, making them exceptionally robust and long-lasting.
Built for both versatility and durability, these vibration transducers are an ideal choice for dependable condition monitoring in demanding environments.
Technical Overview
Our vibration transducers come in a variety of sizes, configurations, and specifications to perfectly suit your needs. All transducers are internally isolated. The frequency range is specified for the transducer when permanently installed. The measuring results will be affected at higher frequencies when using a magnetic foot.

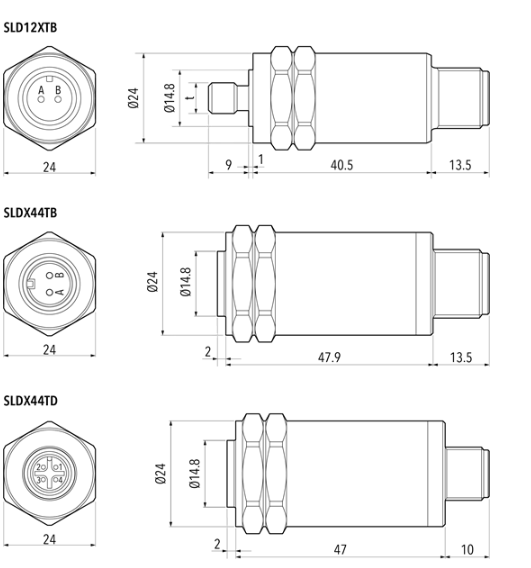

Vibration transducers with top entry
Connection alternatives:
TB = 2-pin connector MIL-C-5015
TD = 4-pin M12 connector
Part number | Ex | Mounting thread | Connection | Frequency range | Sensitivity |
| SLD121 | - | M6, M8, M10, UNF | TB | 2-1000 Hz | 1.2 mV/m/s2 |
| SLD122 | - | M6, M8, M10, UNF | TB | 2-5000 Hz | 4 mV/m/s2 |
| SLD144 | - | M8 tapped hole for mounting stud* | TB, TD | 2-10 000 Hz | 10 mV/m/s2 |
| SLD244 | Ex | M8 tapped hole for mounting stud* | TB, TD | 2-10 000 Hz | 10 mV/m/s2 |
* The mounting studs are available with thread sizes M6, M8, M10, and UNF 1/4″.

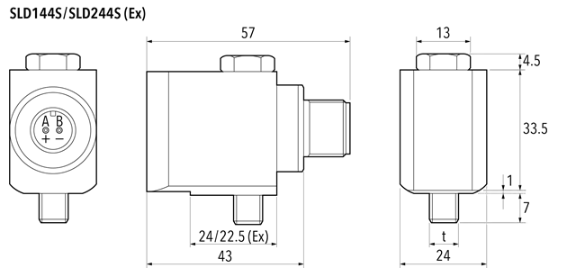

Vibration transducers with side entry
Connection alternatives:
S = Side entry, 2-pin connector MIL-C-5015
Part number | Ex | Mounting thread | Connection | Frequency range | Sensitivity |
| SLD144 | - | M6, M8, UNF | S | 2-10 000 Hz | 10 mV/m/s2 |
| SLD244 | Ex | M8 | S | 2-10 000 Hz | 10 mV/m/s2 |
Vibration transducers MEMS with top entry
Part number | Ex | Mounting thread | Connection | Frequency range | Sensitivity |
| SLD322B-M8 | - | M8 | 2-pin MIL | 1-2000 Hz | 4 mV/m/s2 |
| SLD322B-UNF | - | UNF 1/4" | 2-pin MIL | 1-2000 Hz | 4 mV/m/s2 |
| SLD334B-M8 | - | M8 | 2-pin MIL | 1-2000 Hz | 10 mV/m/s2 |
| SLD334B-UNF | Ex | UNF 1/4 " | 2-pin MIL | 1-2000 Hz | 10 mV/m/s2 |
Vibration transducers MEMS with side entry
Part number | Ex | Mounting thread | Connection | Frequency range | Sensitivity |
| SLD334S-G | - | M3/Glue | 2-pin MIL | 1-2000 Hz | 10 mV/m/s2 |
Installation materials
Connectors, cables, and service box
We offer a wide range of connectors in composite or stainless-steel material. Composite material provides benefits such as vibration dampening and weight reduction, while stainless steel can withstand mechanical forces and works both in high and low temperatures, etc.
For our connectors, there are different types of cables, and to further secure the installation, we supply uncovered, acid-proof stainless steel conduits. These are protective covers slipped onto the cable and fixed to the transducer at the connector. Stainless steel cable clips are available for holding the conduit. For the protection of cable joints from moisture and water, a stainless, acid-proof steel service box is available.
